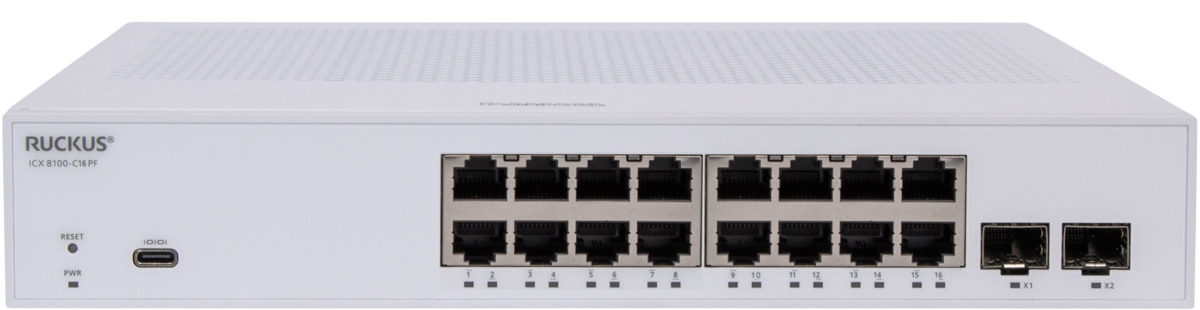

RUCKUS ICX 8100-C16PF
Base Product: ICX8100
Entry-Level Access Compact 16 Ports 1G PoE Switch
Specifications for RUCKUS ICX 8100-C16PF
![ICX-8100-C16PF | RUCKUS ICX 8100-C16PF []](https://productresources.commscope.com/admin/ImageServer.php?ID=9e12da77564@pjk349&class=Mamfile&rand=82befe0bf1621b8e1994c942074f59cd&downloadname=RUCKUS-ICX8100-C16PF-front.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 120 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 16 |
| 1 GbE SFP Ports, quantity, maximum | 2 |
| 10 GbE SFP+ Ports, quantity, maximum | 2 |
| PoE Power Budget, maximum | 124 W |
| PoE/PoE+ | Yes |
| Stacking | No |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | No |
| OpenFlow with Hybrid Port Mode | No |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | No |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | No |
| Multi Chassis Trunking (MCT) | No |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
