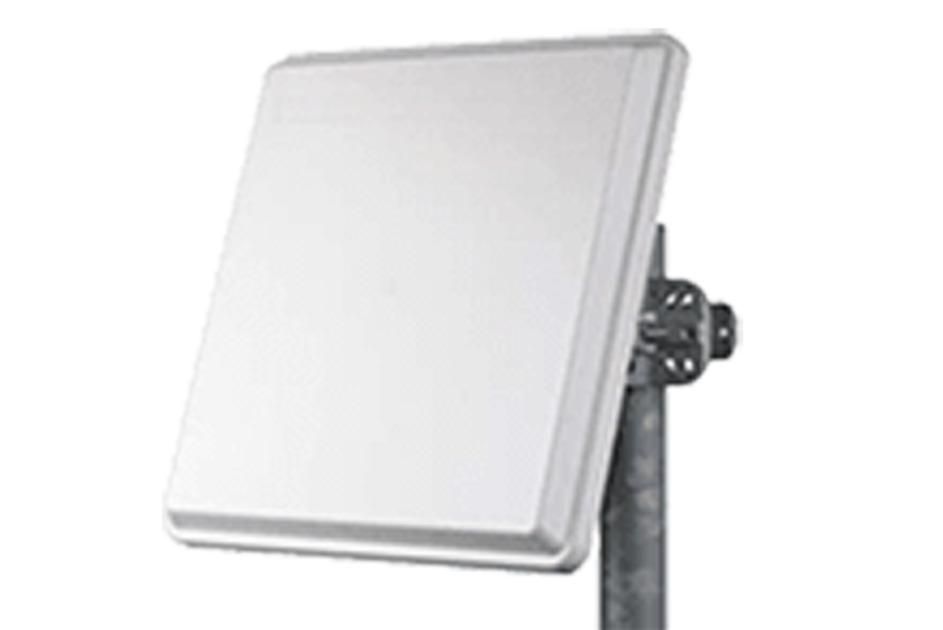

AT-2401-DP Antenna
5GHz dual polarized high gain 24dBi directional antenna
Specifications for AT-2401-DP Antenna
![AT-2401-DP | AT-2401-DP Antenna [AT-2401-DP Antenna Pattern]](https://productresources.commscope.com/admin/ImageServer.php?ID=72273a79678@pjk349&class=Mamfile&rand=6c90e921f649a7269929c4a74f4816b3&omitPreview=true&downloadname=at-2401dp-pattern-th.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Antenna |
| Product Brand | RUCKUS® |
General Specifications
| Application | Long range backhaul /PtP/PtMP Non-Root |
| Antenna Gain | 24.5 dBi/23.5 dBi |
| Polarization | Vertical & Horizontal |
| Connector Location | Two N-type, two 1 m RF cables included |
| IP Rating | IP-67 |
| Mounting | Wall/Pole Mount, mounting kit included |
| Wi-Fi Band | 5 GHz |
| Bandwidth H/V @ 3 dB | 7-9/7-9 degrees |
Dimensions
| System Dimensions | 370 mm × 370 mm × 40 mm |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
Packaging and Weights
| Weight, net | 1800 g | 3.968 lb |
