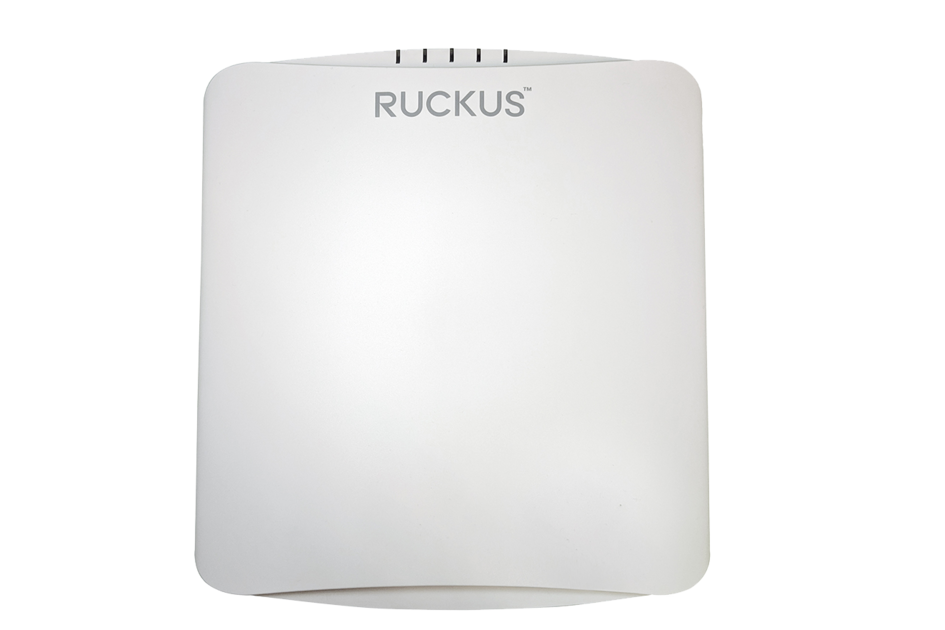

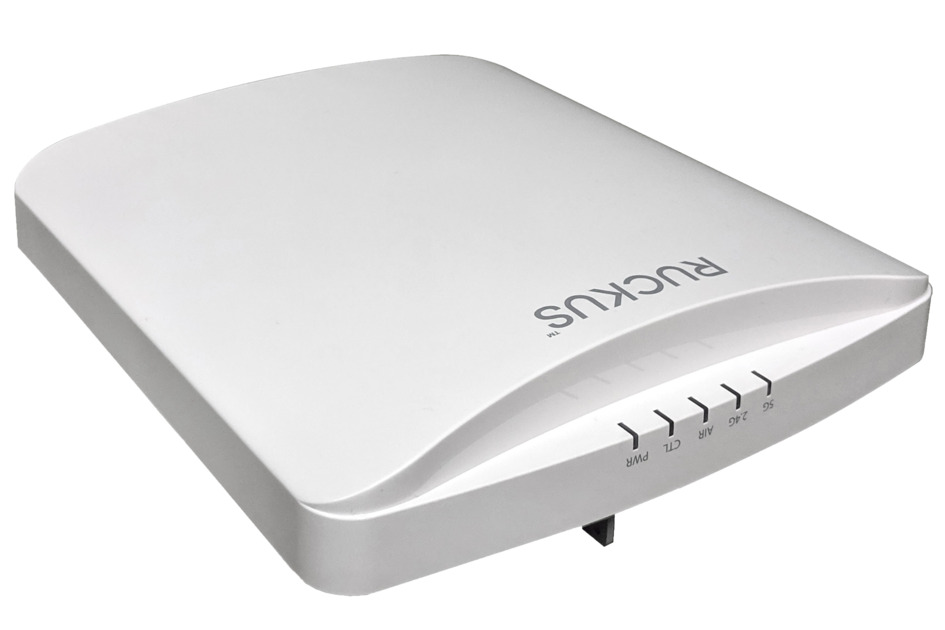

RUCKUS R750 Indoor Access Point Features
The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
Specifications for RUCKUS R750 Indoor Access Point
Product Classification
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Product Type | Indoor access point |
Product Brand | RUCKUS® |
General Specifications
Antenna Patterns, per band | 4000+ |
Antenna Gain | Up to 3 dBi |
BeamFlex | Yes |
ChannelFly | Yes |
Concurrent Users | 1024 |
Controller Support | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector | Standalone |
Ethernet Ports | 1 x 1 GbE | 1 x 2.5 GigE |
IoT Support | IoT Onboard |
Number of Radios | Dual-Radio |
PD-MRC | Yes |
PHY Rate at 2.4 GHz, maximum | 1148 Mb/s |
PHY Rate at 5 GHz, maximum | 2400 Mb/s |
Combined Max PHY Rate | 3548 Mb/s |
Radio Chains and Streams | 4x4:4 |
Rx Sensitivity at 2.4 GHz | -102 dBm |
Rx Sensitivity at 5 GHz | -102 dBm |
SmartMesh | Yes |
USB | USB 2.0 |
Venue Type | Education | Hospitality | Office/Retail | Public Venue |
Venue Sub-Type | Cafeteria/Multipurpose Room | Library | Lobby/Common Spaces | Meeting Rooms | Venue VIP Rooms |
Wi-Fi Bands Supported | 2.4 GHz | 5 GHz |
Wi-Fi Generation | Wi-Fi 6 |
Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
Environmental Specifications
Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
