RUCKUS ICX 8200-C08PF

Base Product: ICX8200

Entry-Level+ Access Compact 8 Ports 1G PoE Switch

Specifications for RUCKUS ICX 8200-C08PF

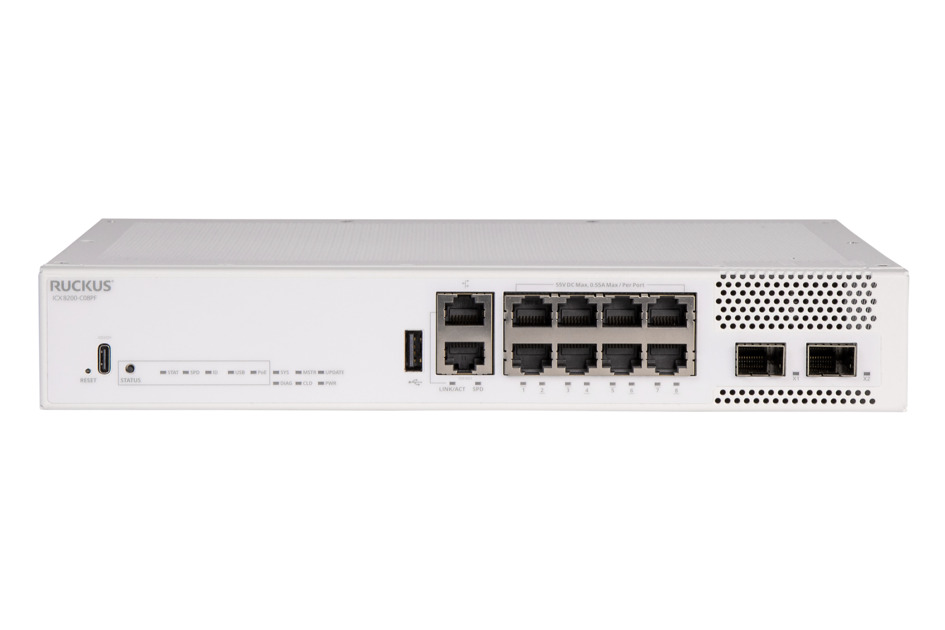

ICX8200-C08PF | RUCKUS ICX 8200-C08PF [0L5A5979 - ICX 8200-C08PF - Back]
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Ethernet switch
Product Brand RUCKUS®
Switching Capacity, maximum 56 Gb/s
1 GbE RJ45 Ports, quantity, maximum 8
1 GbE SFP Ports, quantity, maximum 2
10 GbE SFP+ Ports, quantity, maximum 2
PoE Power Budget, maximum 124 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 240 Gb/s
PoE/PoE+ Yes
Stacking Yes
sFlow Yes
Layer 3 (STATIC, RIP, OSPF) Yes
OpenFlow with Hybrid Port Mode Yes
Campus Fabric Technology No
Redundant Power Option No
Hot Swap Internal Power Supplies & Fans No
802.3bt2 (90 W PoE Power per Port) No
VRF Yes
EEE (Energy Efficient Ethernet) Yes
IPsec VPN, with service module No
MACsec No
BGP No
Reversible Airflow Option No
VxLAN Yes
Multi Chassis Trunking (MCT) No
Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
