Base Product: ICX7750

Mid-Range Aggregation/Core 48 Ports 10G/SFP+ Chassis Replacement Switch

Specifications for RUCKUS ICX 7750-48F

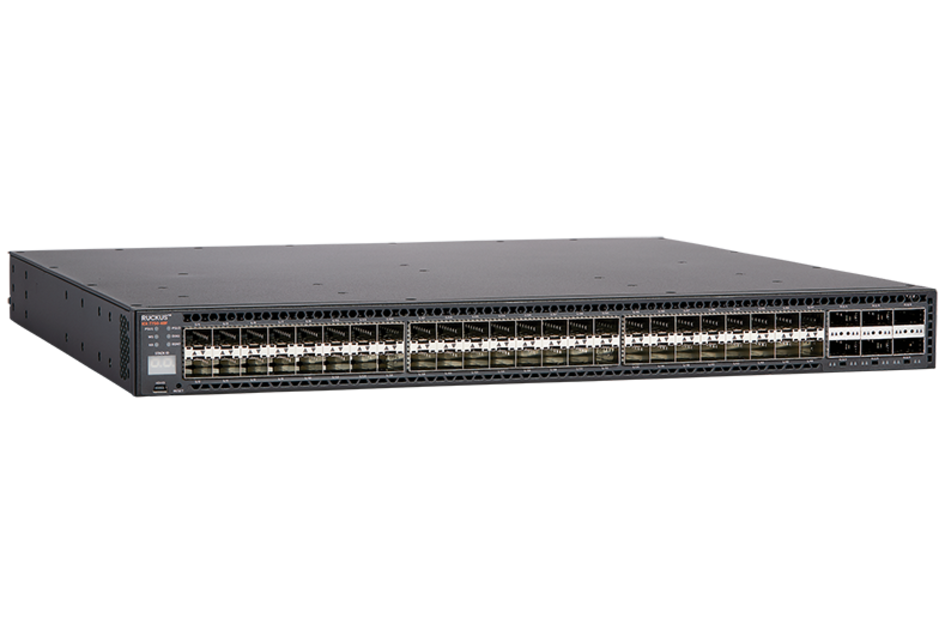

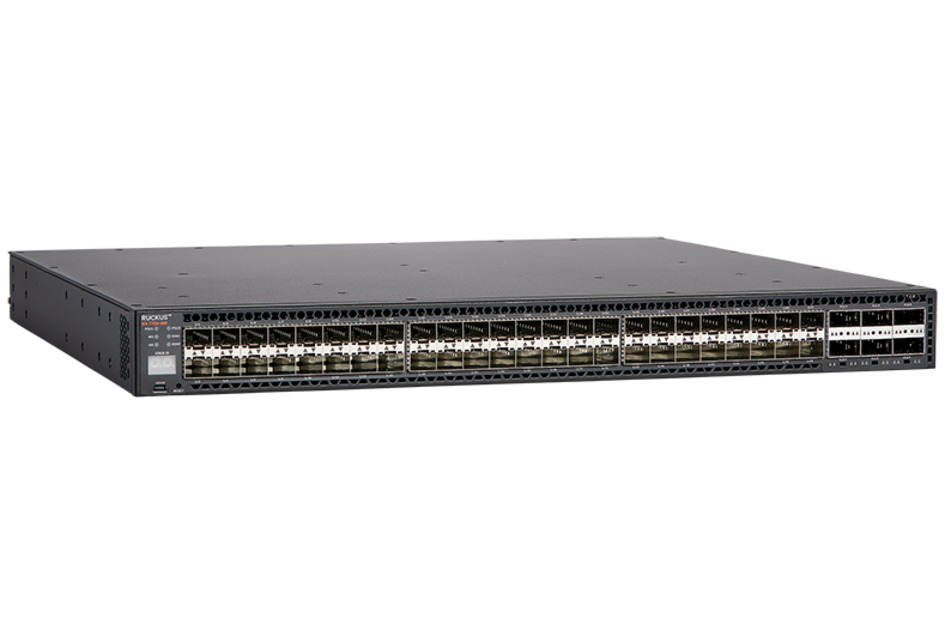

ICX7750-48F | RUCKUS ICX 7750-48F [icx7750-48f_right]
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Ethernet switch
Product Brand RUCKUS®
Switching Capacity, maximum 1920 Gb/s
1 GbE SFP Ports, quantity, maximum 48
10 GbE SFP+ Ports, quantity, maximum 48
40 GbE QSFP Ports, quantity, maximum 12
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 5760 Gb/s
PoE/PoE+ No
Stacking Yes
sFlow Yes
Layer 3 (STATIC, RIP, OSPF) Yes
OpenFlow with Hybrid Port Mode Yes
Campus Fabric Technology Yes
Redundant Power Option Yes
Hot Swap Internal Power Supplies & Fans Yes
802.3bt2 (90 W PoE Power per Port) No
EEE (Energy Efficient Ethernet) No
IPsec VPN, with service module No
MACsec No
Reversible Airflow Option Yes
Multi Chassis Trunking (MCT) Yes
Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
