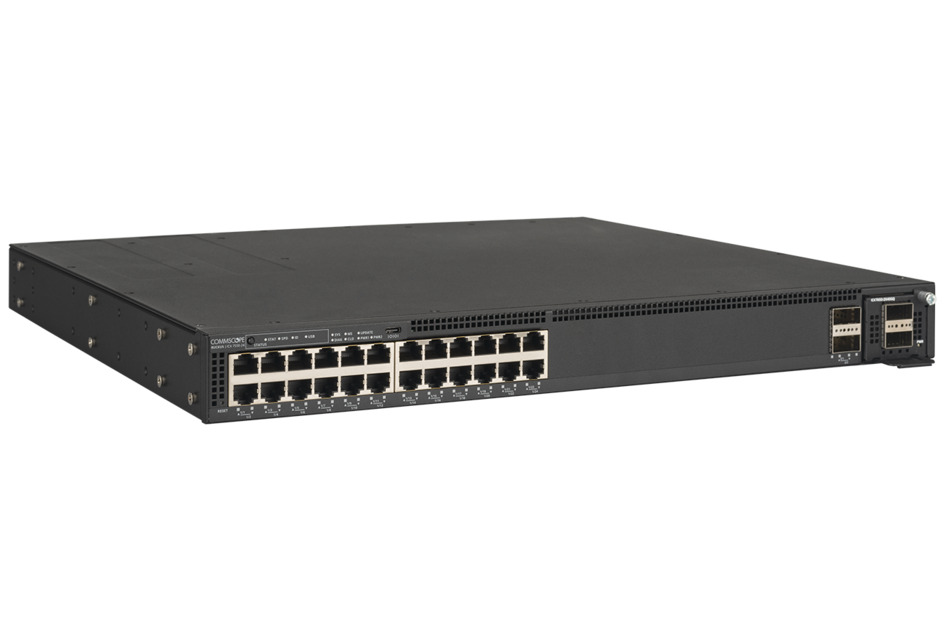

RUCKUS ICX 7550-24

Base Product: ICX7550

Mid-Range Access 24 Ports 1G Switch

Specifications for RUCKUS ICX 7550-24

ICX7550-24 | RUCKUS ICX 7550-24 [RUCKUS ICX 7550-24]
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Ethernet switch
Product Brand RUCKUS®
Switching Capacity, maximum 368 Gb/s
1 GbE RJ45 Ports, quantity, maximum 24
1 GbE SFP Ports, quantity, maximum 4
40 GbE QSFP Ports, quantity, maximum 4
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 960 Gb/s
PoE/PoE+ No
Stacking Yes
sFlow Yes
Layer 3 (STATIC, RIP, OSPF) Yes
OpenFlow with Hybrid Port Mode Yes
Campus Fabric Technology No
Redundant Power Option Yes
Hot Swap Internal Power Supplies & Fans Yes
802.3bt2 (90 W PoE Power per Port) No
EEE (Energy Efficient Ethernet) Yes
IPsec VPN, with service module No
MACsec Yes
Reversible Airflow Option Yes
Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
