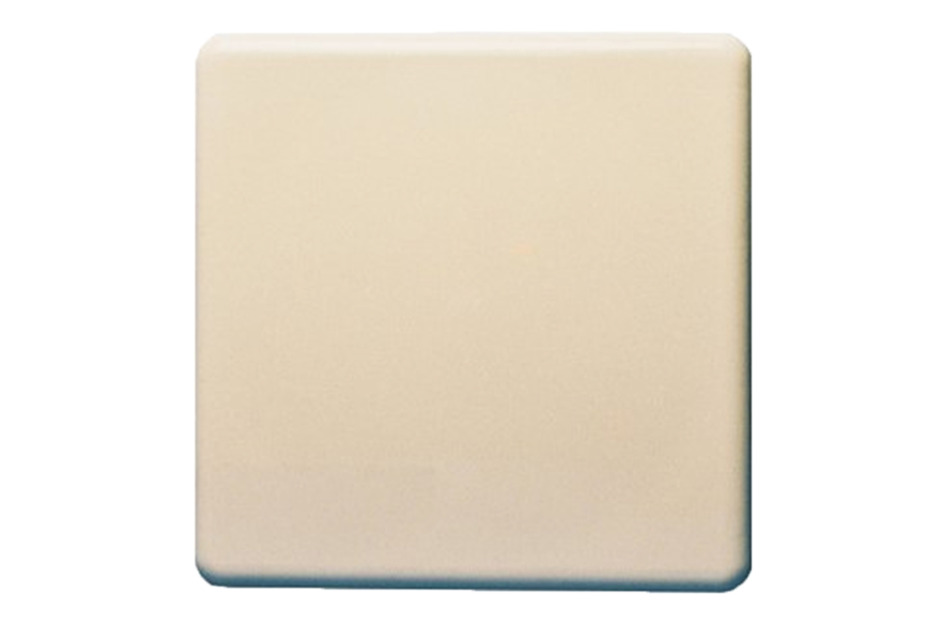

ANT-2140-0000 Antenna
2-Port Directional H/V MIMO Antenna for the T350SE
Specifications for ANT-2140-0000 Antenna
![ANT-2140-0000 | ANT-2140-0000 Antenna []](https://productresources.commscope.com/admin/ImageServer.php?ID=f9c59a67967@pjk349&class=Mamfile&rand=f0c5d113cb4dc4c163c4fd14a8f4ec73&downloadname=ANT-2140-0000.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Antenna |
| Product Brand | RUCKUS® |
General Specifications
| Application | Long range backhaul /PtP/PtMP Non-Root |
| Antenna Gain | 11 dBi/10.5 dBi |
| Polarization | Vertical & Horizontal |
| Connector Location | Two N-type located at the back of the unit. No cable included |
| IP Rating | IP-67 |
| Mounting | Wall/Pole Mount, mounting kit included |
| Wi-Fi Band | 5 GHz | 2.4 GHz |
| Bandwidth H/V @ 3 dB | 31-33/31-27 degrees |
Dimensions
| System Dimensions | 305 mm × 305 mm × 25 mm |
Environmental Specifications
| Operating Temperature | -55 °C to +71 °C (-67 °F to +160 °F) |
Packaging and Weights
| Weight, net | 1200 g | 2.646 lb |
