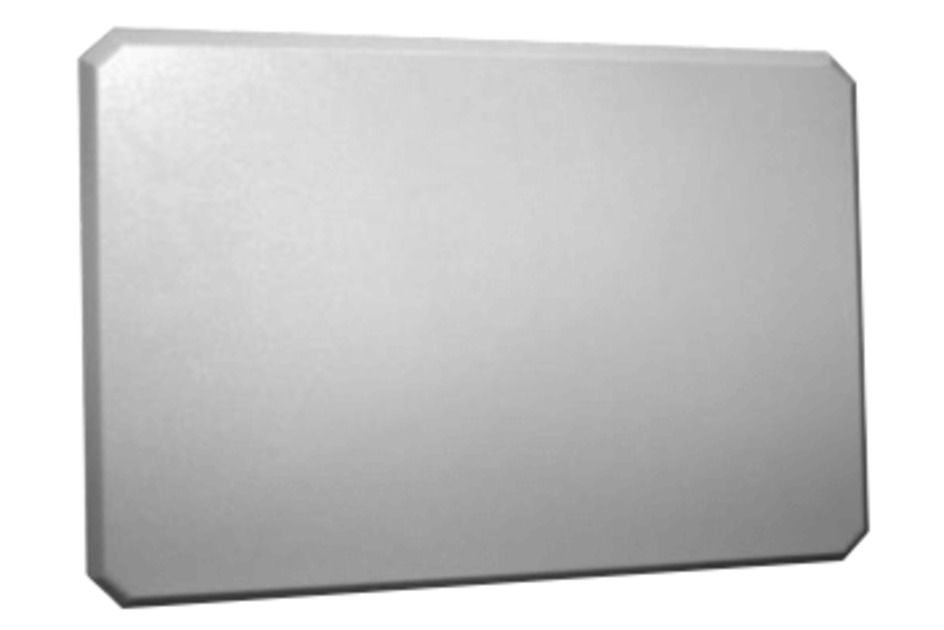

ANT-2120-0000 Antenna
4-Port Directional H/V MIMO Antenna for the T750SE
Specifications for ANT-2120-0000 Antenna
![ANT-2120-0000 | ANT-2120-0000 Antenna []](https://productresources.commscope.com/admin/ImageServer.php?ID=a70d2a79634@pjk349&class=Mamfile&rand=d51714ea613b4cb0ae71347891047cfe&downloadname=ant-2120-dp01.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Antenna |
| Product Brand | RUCKUS® |
General Specifications
| Application | Long range backhaul /PtP/PtMP Non-Root |
| Antenna Gain | 14 dBi/14.5 dBi |
| Polarization | Vertical & Horizontal |
| Connector Location | Four N-type located at the back of the unit. No cable included |
| IP Rating | IP-67 |
| Mounting | Wall/Pole Mount, mounting kit included |
| Wi-Fi Band | 5 GHz | 2.4 GHz |
| Bandwidth H/V @ 3 dB | 31-33/31-27 degrees |
Dimensions
| System Dimensions | 507 mm × 368 mm × 21.1 mm |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Packaging and Weights
| Weight, net | 2300 g | 5.071 lb |
