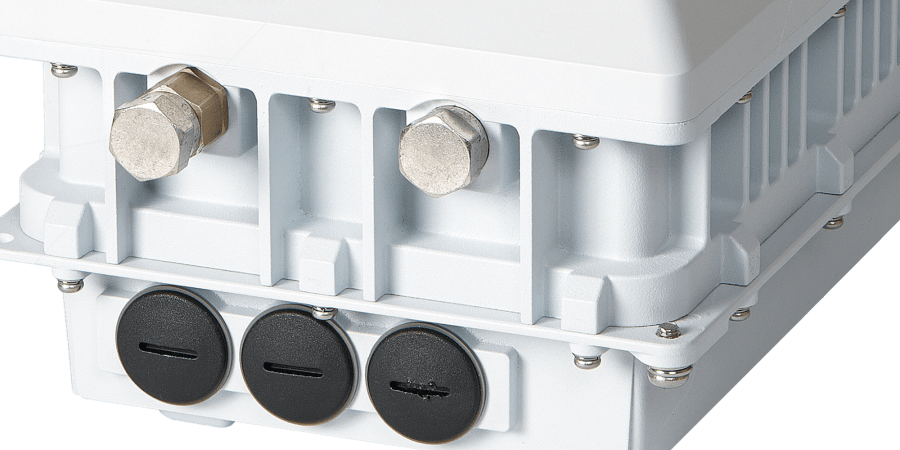

7781-CM Outdoor Access Point

Outdoor 802.11n Wi-Fi Access Point with Cable Modem

In a competitive marketplace, cable operators are looking to differentiate their services and grow revenues by extending broadband Wi-Fi throughout their coverage areas. But overlaying existing hybrid fiber coax (HFC) cable networks with new Wi-Fi services can be a complex—and expensive—proposition.

The Ruckus 7781-CM outdoor access point delivers the industry’s highest performing 802.11n 3x3:3 Wi-Fi in a lightweight, strand-mounted form factor that easily integrates with existing HFC networks. It features patented Ruckus technology to extend wireless range and reliability, combined with an integrated DOCSIS 3.0-, EuroDOCSIS-, and Japan-certified cable modem. Available with an omnidirectional antenna, the 7781-CM delivers consistent, reliable data access in a wide range of high-density environments.

Specifications OverviewSee all Specs

  • Wi-Fi Standards
    IEEE 802.11a/b/g/n
  • Peak PHY Rates
    2.4GHz: 450 Mbps
    5GHz: 450 Mbps
  • Client Capacity
    Up to 500 clients per AP
  • Antenna Optimization
    BeamFlex+
    Polarization Diversity with Maximal Ratio Combining (PD-MRC)
  • Wi-FI Channel Management
    n/a
  • Mesh
    n/a
  • USB
    n/a
  • Ethernet
    n/a
  • Operating Temperature
    (-US01/WW01/JP21)
    -40ºC (-40ºF) to +65ºC (149 ºF)
    (WW11)
    -10ºC (14ºF) to +65ºC (149 ºF)
