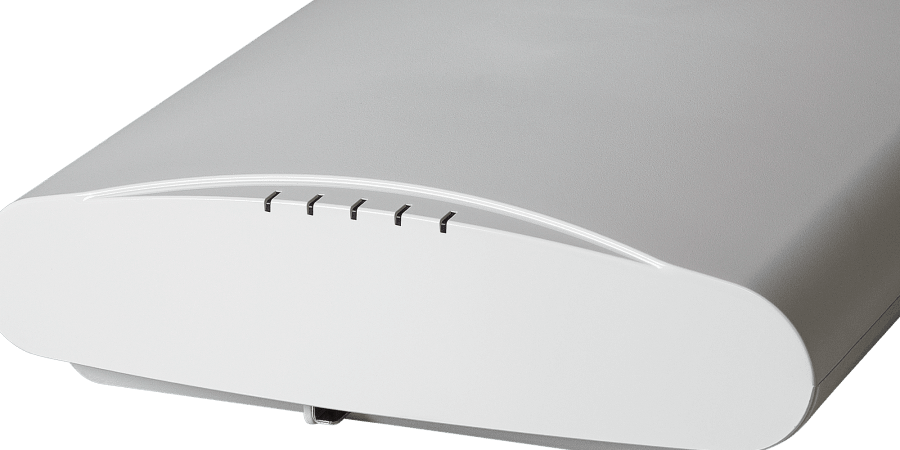

R720 Indoor Access Point

Indoor 802.11ac Wave 2 Wi-Fi Access Point with Multi-Gigabit Backhaul for Ultra-Dense Device Environments

With hundreds of devices and nonstop wireless interference, busy indoor environments can make challenging Wi-Fi deployments. Step up to blazing fast, reliable connectivity in the densest indoor spaces with the Ruckus R720 access point.

The R720 is our highest-capacity four-stream 802.11ac Wave 2 AP. With four streams of MU-MIMO connectivity, it can simultaneously transmit to multiple Wave 2 clients in the widest available channels, drastically improving RF efficiency. And with support for multi-gigabit 2.5 GbE, you can more than double your backhaul capacity without having to add switch ports or run new Ethernet cabling.

Give your users a consistently great wireless experience with the best enterprise Wi-Fi in the business.

Multi-Gigabit Backhaul
Liberate the multi-gigabit power of Wave 2 Wi-Fi by using built-in 2.5GbE (802.3bz) backhaul to connect to multi-gigabit switches.
Stunning Wi-Fi Performance
Provide a great user experience no matter how challenging the environment with BeamFlex+ adaptive antenna technology and a library of 4K+ directional antenna patterns.
Serve More Devices
Connect more devices simultaneously with four MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device performance.
Multiple Management Options
Manage the R720 from the cloud, or with on-premises physical/virtual appliances.
Get Optimal Throughput
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
Better Mesh Networking
Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks.
Expandable Capabilities
Augment AP capabilities through the onboard USB 2.0 port to provide additional technologies like BLE.
More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.

Overview

  • Description
    4x4:4ss 802.11ac Wave 2 access point with 2.5Gbps backhaul
  • Maximum PHY Rate
    1733 Mbps
  • Wi-Fi Technology
    • 802.11ac Wave 2 (5GHz)
    • 802.11n (2.4GHz)
  • Concurrent Users
    512
  • Radio Chains:Streams
    4x4:4ss
  • BeamFlex Gains
    6dB
  • Max. Interference Mitigation
    15dB
  • PD-MRC
    Yes
  • Rx Sensitivity
    -104dBm
  • ChannelFly
    Yes
  • Smart Meshing
    Yes
  • USB
    Yes
  • Ethernet Ports
    • 1 – 2.5GbE
    • 1 – 1GbE

Hojas de datos

Ruckus R720 (Inglés)

Tecnología multigigabit

Tecnologías inalámbricas generales

Qué significa:

Tecnología de varios gigabits y específicamente el estándar IEEE 802.3bz, introducido formalmente como 2.5GBASE-T y 5GBASE-T en 2016. IEEE 802.3bz es un estándar para Ethernet sobre cable de cobre de par trenzado a velocidades de 2,5 Gbps y 5 Gbps.

Por qué debe interesarle:

Las conexiones Gigabit nos han servido durante muchos años, ofreciendo datos de baja latencia rápida a portátiles, teléfonos inteligentes y otros dispositivos. Sin embargo, la última generación de puntos de acceso puede aplastar una conexión de 1 GbE para que la red cableada se convierta en un cuello de botella de rendimiento. La tecnología de varios gigabits, que opera por encima de 1 Gb/s, admite una nueva velocidad de datos de 2,5 Gb/s y 5 Gb/s, al tiempo que aprovecha el cableado Cat 5e (para 2,5 Gb/s) o Cat 6 (para 5 Gb/s) comúnmente implementado. Por lo tanto, las empresas pueden maximizar el rendimiento de sus redes Wi-Fi de la manera más rentable y menos perjudicial. Los switches de la serie ICX Z de Ruckus y el punto de acceso Ruckus R720 admiten tecnología de varios gigabits / 802.3bz para ayudar a las organizaciones a maximizar el rendimiento de su red Wi-Fi.
